Vibration Meters

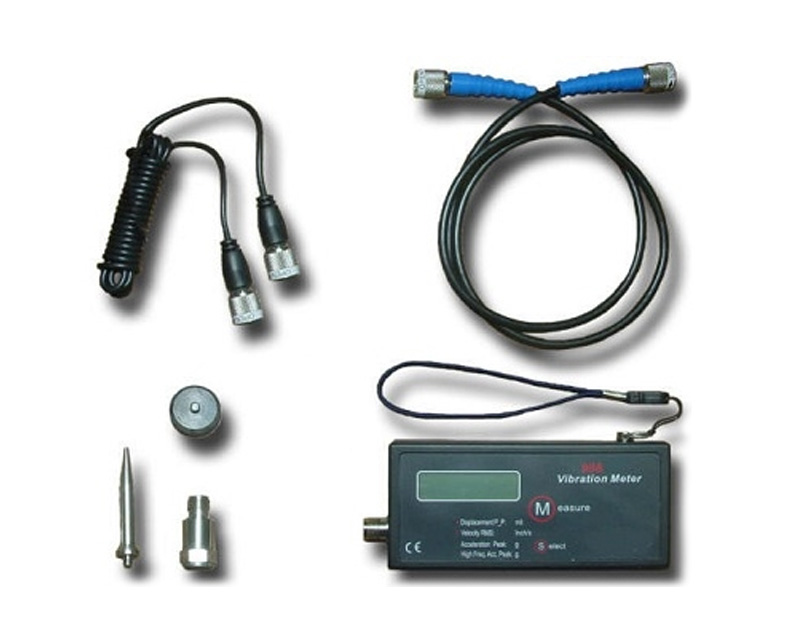

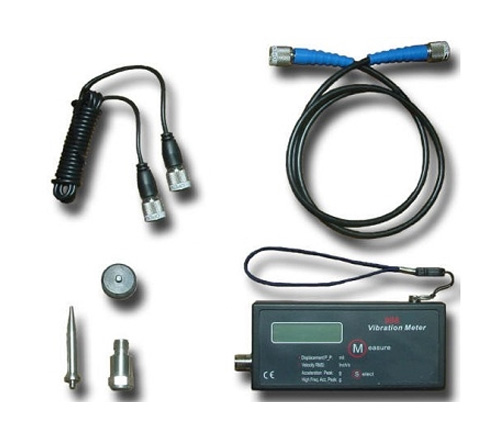

Vibration Meter, Model 908

Features

  • Measuring vibration velocity, displacement and acceleration.
  • Small size, transducer included, battery powered, no other component required.
  • Optional for inner or external Accelerometer.
  • One button control both power and measurement. Very easy to use.
  • 3 1/2 LCD digital display, sampling per second.
  • Holding function. Automatic power off.
  • Suitable for monitoring machinery vibration caused by out-of-balance, misalignment, gear damage, bearing faults, etc.


  • Technical Data
    Amplitude Ranges
    Displacement : 1-1999 μm (or 200 mil) peak-peak
    Velocity : 0.1-199.9 mm/s (or 20 in/s) true RMS
    Acceleration : 0.1-199.9 m/s2 (or 20 g) Peak
    Frequency Response
    Displacement : 10-500Hz.
    Velocity : 10-1000Hz
    Acceleration : 10-1000Hz - Inner accelerometer 908B
    : 10-10000Hz - Depending on external accelerometer model
    Overall accuracy : ±5%
    Temperature range : 0 - 50 °C
    Battery : 9V 6F22, 25 hours of continuous operation.
    Pickup : Accelerometer with handheld probe and/or magnetic base.
    Dimensions : 13 x 6 x 2.3 cm
    Weight : 200 gms

Click On Image For Bigger View

Vibration Meter, Model S909z-1

Features

  • Specifically designed for on site maintenance in your plant or workshop.
  • Extremely light and potable.
  • Low cost instrument.
  • Measures overall vibration level by velocity RMS.
  • Easy to use instrument requires little operator training.
  • One-button operation, holding function and automatic power off.


  • Technical Data
    Measurement Parameter : RMS of vibration velocity (mm/s)
    Range : 0.1 mm/s ~ 199.9 mm/s
    Accuracy : ±5% ±2 digits
    Frequency Response
    * : 20Hz < f < 1000Hz, ±10%
    * : 10Hz < f < 20Hz, +10%, -20%
    Display : 3 ½ digits LCD, refresh interval about 0.5 second
    Power Supply : 2 button batteries (LR44 or SR44)
    Battery Capacity : 10 Hours continuously or 400 times measurement
    Operation Environment
    Temperature : 0°C ~ 40°C
    Realtive Humidity : < 85%
    Dimensions : 150mm x 22mm x 18mm (WxDxH)
    Weight : 55 gms

Click On Image For Bigger View

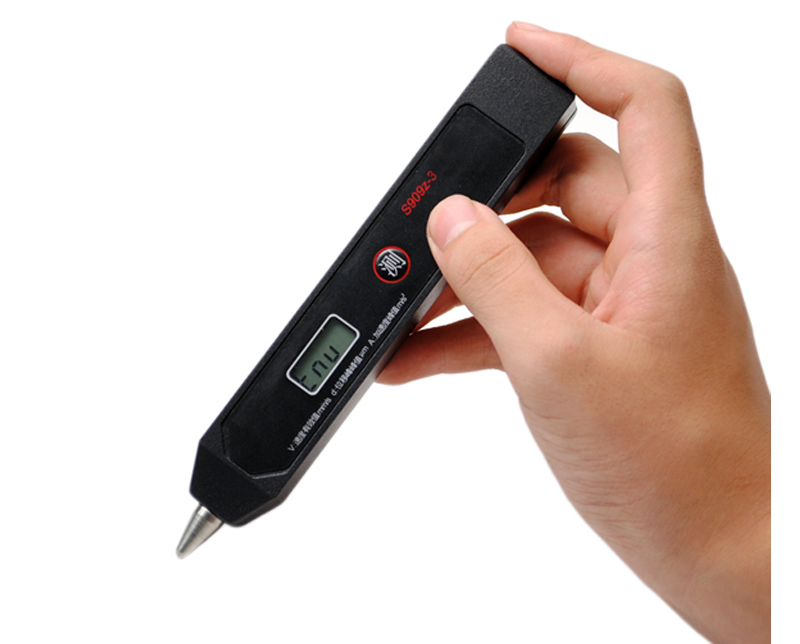

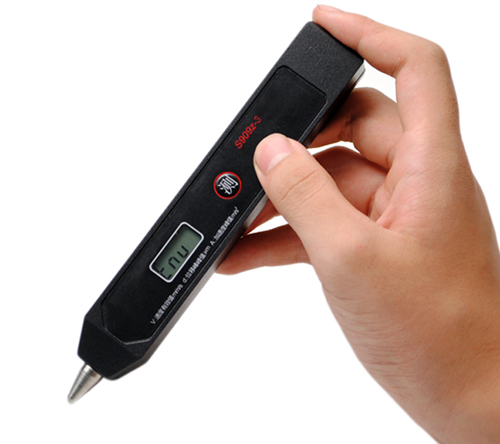

Vibration Meter, Model S909z-3

Features

  • 3 Parameter Vibration meter - Pen-Size
  • Specifically designed for on site maintenance in your plant or workshop.
  • Extremely light and potable.
  • Low cost instrument.
  • Easy to use instrument requires little operator training.
  • One-button operation, holding function and automatic power off.
  • Remote switch and magnet base to avoid handheld problem.
  • Reliable and consistent data.


  • Technical Data
    Amplitude Parameters
    Displacement : 1 µm/s ~ 1999µm/s Eq. peak-peak
    Velocity : 0.1 mm/s ~ 199.9 mm/s true RMS
    Acceleration : 0.1 m/s2 ~ 180 m/s2 Eq. Peak
    Frequency Response : 10-1000Hz
    Overall Accuracy : ±5% + 2 digits
    Temperature Range : 0°C ~ 50°C

Click On Image For Bigger View

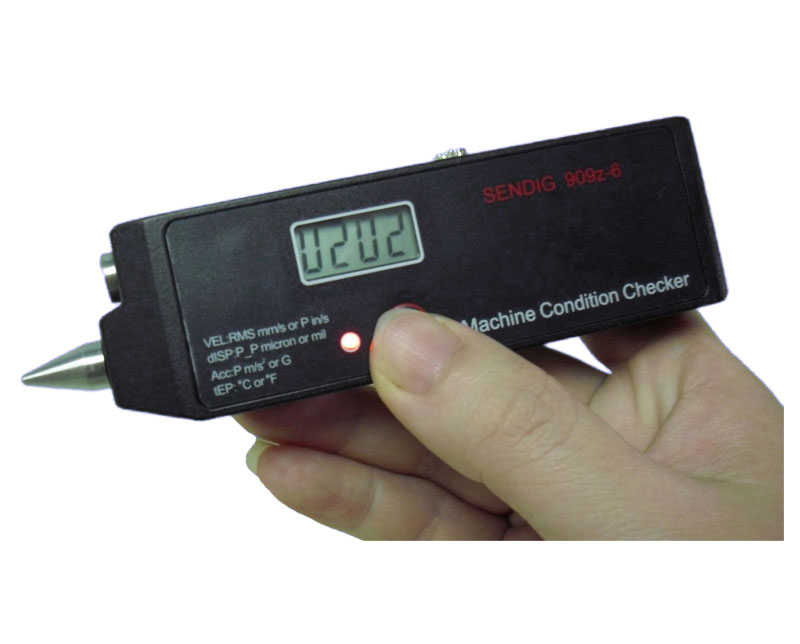

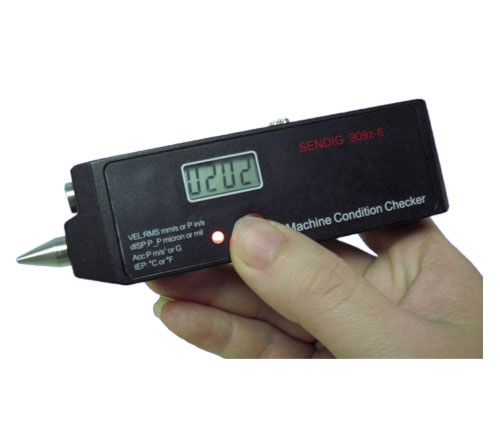

Bearing Condition Checker, Model 909z-6

Features

  • One button control power, parameter selection, ISO10816 group selection, measurement and holding.
  • Remote switch and magnet base to avoid handheld problem.
  • Reliable and consistent data.
  • Measures vibration velocity, displacement & acceleration envelope to check machine/bearing health.
  • Yellow / Red / Green LED indicator.
  • Built-in ISO10816-2 & -3 groups selectable.
  • Optional external or integrated accelerometer.
  • Optional magnet base and remote switch.
  • Inclusive of Sensor - Easy to use.
  • Automatic power off. 4 digital LCD display.
  • Metal case, Robust, Reliable.
  • Selection of Metric & English measuring units.


  • Technical Data
    Measurement Range & Frequency Response
    Displacement : 1 to 3000 µm / 0.03 to 120 mil / 10 Hz~500Hz peak-peak
    Velocity : 0.1 to 250 mm/s / 0.01 to 15 inch/s / 10Hz~1000Hz RMS
    Acceleration : 0.1 to 100 m/s2 / 0.01 to 10 g / 10Hz~1kHz peak
    Accuracy : + 5% + 2 digits
    Enveloped Acceleration : 0.1 to 25 unit / 5Hz~2kHz demodulated from 3kHz~10kHz
    Temperature : -33 to 220°C / -27.4 to 428°F
    Battery : 1/2 AA, 3.6V, 20-29mA, > 100 hours of continuous operation.
    Dimensions : 110x35x17 mm
    Weight : 100 g (Including battery)
    Pickup : Integrated or cable connected external accelerometer with extension stinger & magnet base

Click On Image For Bigger View
