MR. SHIMS BELT/SHEAVE LASER ALIGNMENT TOOL - red laser

    Benefits:

  • Reduces vibration
  • Extends the life of belts and sheaves
  • Aids in proper belt tensioning
  • Eliminates downtime and production delays

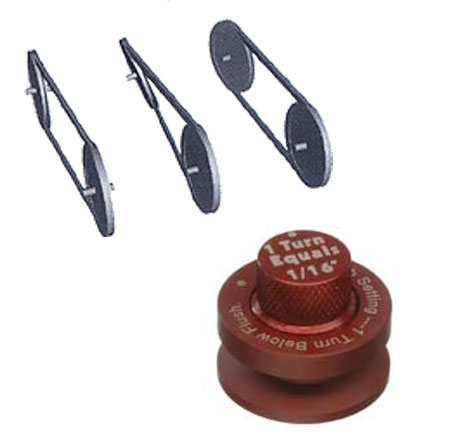

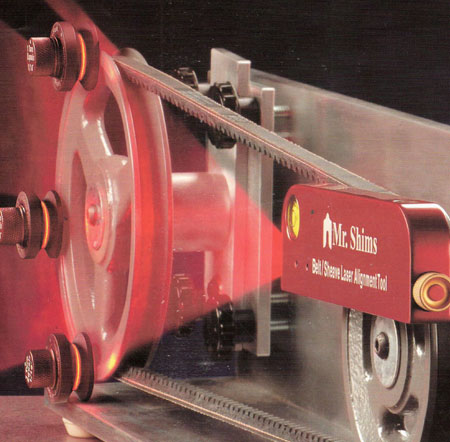

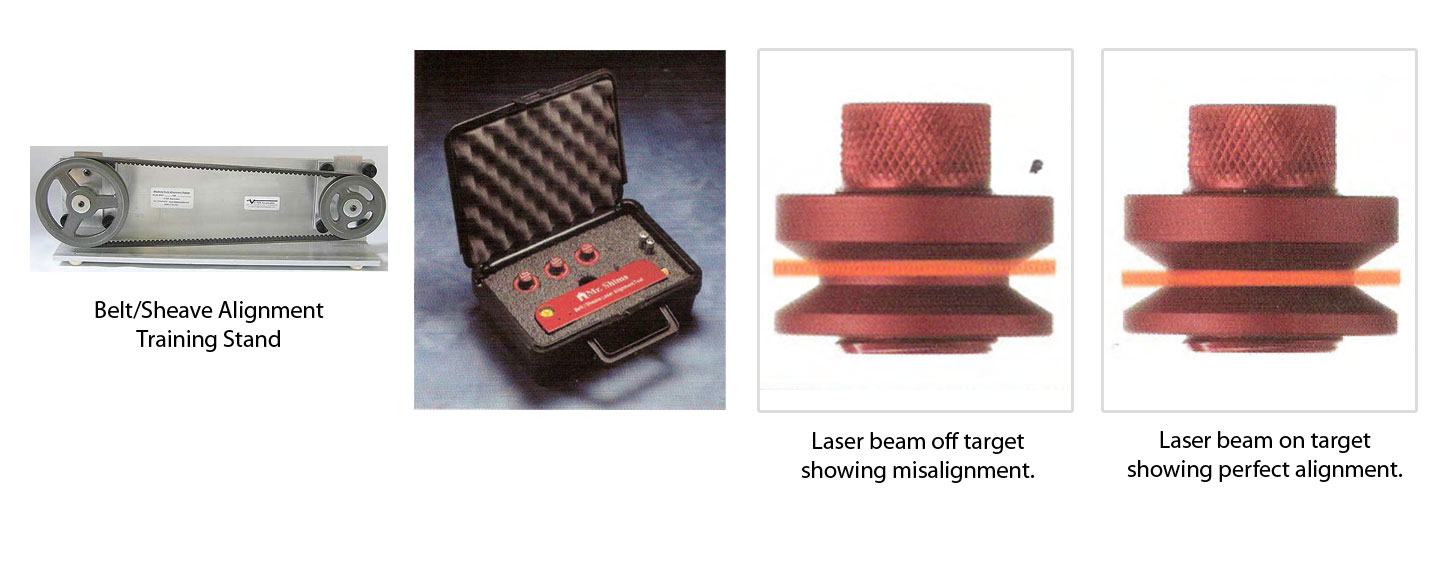

  • Laser beams are visible making adjustments for accurate parallel and angular alignment easy.



The tool comes with adjustable targets for sheaves of different thicknesses. Alignment with a string or straight edge normally takes two mechanics.
With Mr. Shims Laser Alignment Tool one operator can align sheaves quick and easy. All adjustments are "live" and easy to accomplish accurately.

The tool and targets come in a compact, easy to carry kit




Technical Specifications Model LA 12000 Belt/Sheave Alignment System

  • Laser Class: 2
  • Power Out: <1 mW
  • Laser Wavelength: 635 - 670 mm
  • Sheave Diameters: 2.5" (60mm) to 2.5' (770 mm)
  • Operating Distance: 32 feet (10 meters)
  • Battery Power: 2 ea Size "AAA" Batteries (8 hrs)
  • Pulley Alignment Tool: W x Lx D: 1-3/4" x 6-1/2" x 5/8" - (45mm x 165mm x 16mm)
  • Target Dimensions: 1-1/4" diameter x 1" length
  • Weight of Laser Tool: 12 oz (4kg)
  • Housing I Target: High Grade Anodized Aluminum
  • Targets: Qty - 3 adjustable over 5/8" (16mm)
  • Accuracy: .050
  • Case Dimensions: W x Lx D: 7" x 10-1/2" x 3" - (260mm x 175mm x 75mm)
  • Total System Weight: 2 pounds (.9kg)

MR. SHIMS BELT/SHEAVE LASER ALIGNMENT TOOL - green laser

    Benefits:

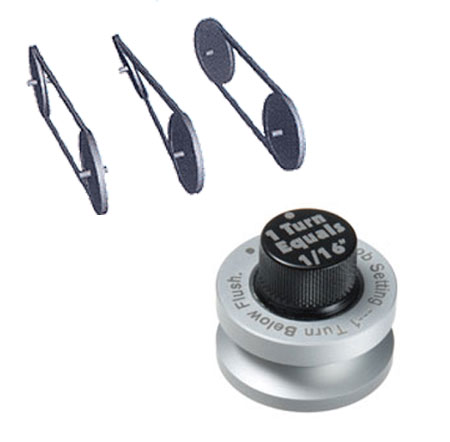

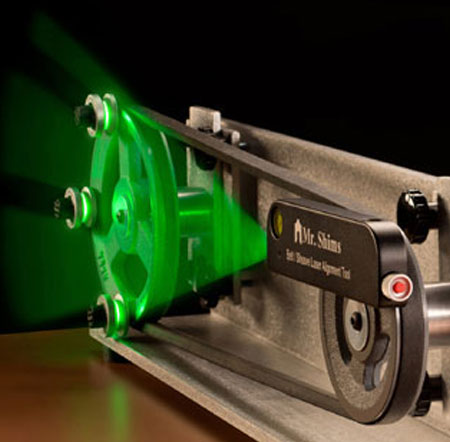

  • Green Laser Works Indoors and Outdoors
  • Premature failure, accelerated belt and sheave wear are a thing of the past.
  • This tool is economical, portable and no special training is required.
  • The Mr. Shims Green Laser Model works perfectly indoors and outdoors and is 10x's brighter.
  • The LASER and magnetic targets and magnetic targets set up in minutes, showing you exactly what to do.
  • Vibration reduction, Longer belt, sheave life and aids in proper belt tensioning.
  • Helps eliminate costly downtime and production delays.
  • Visible outdoors, indoors and anywhere. 10x's brighter than our red laser.
  • Makes adjustments for parallel and angular alignment easy and quick.



Mr. Shims Green Laser Alignment Tool comes with adjustable targets for handling sheaves of different thicknesses.

Alignment adjustments with string or a straight edge normally takes two mechanics. The job can be done easily by one operator with either of Mr. Shims' Laser Alignment Tools.




Specifications Model LA12000G Sheave Alignment System

  • Laser Class: 2
  • Power Out: <1 mW
  • Laser Wavelength: Green Laser 532 nm
  • Sheave Diameters: 2.5" (60mm) to 2.5' (770 mm)
  • Operating Distance: 32 feet (10 meters)
  • Battery Power:  Green Laser 2 ea size "AAA Batteries" (4 hrs +)
  • Pulley Alignment Tool: W x Lx D: 1-3/4" x 6-1/2" x 5/8" - (45mm x 165mm x 16mm)
  • Target Dimensions: 1-1/4" diameter x 1" length
  • Weight of Laser Tool: 12 oz (4kg)
  • Housing I Target: High Grade Anodized Aluminum
  • Targets: Qty - 3 adjustable over 5/8" (16mm)
  • Accuracy: .050
  • Case Dimensions: W x Lx D: 7" x 10-1/2" x 3" - (260mm x 175mm x 75mm)
  • Total System Weight: 2 pounds (.9kg)
